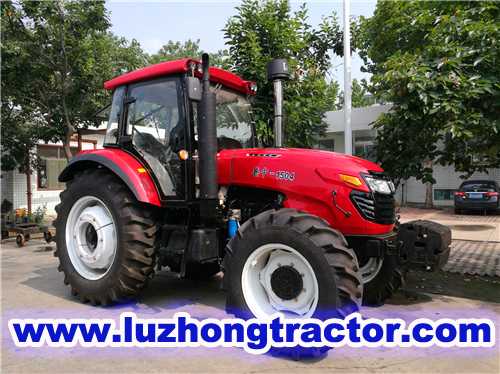

Luzhong TF1504 tractor

Brief Introduction of the 150hp farm tractor
Super power, good performance :
1.Match with domestic famous countries, discharge upgrade, low fuel consumption, large torque backup, low power is strong.
2. With double clutch, by using 16 + 8, flat floor lateral shift transmission, speed matching is reasonable, high work efficiency.
3.Double speed power output, according to the operation needs can choose 540/760 540/1000 r/r/min, min and 760/1000 r/min.
4.Enhanced oil cylinder of front drive axle, gap, high bearing capacity is strong.
5.Hydraulic oil supply independently, full hydraulic pressure independent steering, small turning radius.
6.Equipped with cab,Heater and A/C.

Basic Specification

Features:TF series chassis, 16 forwards, 8 reverse,YTO engine or Weichai engine (optional)External Hydraulic LiftWet brake, disk typeHydraulic Power SteeringFlat deck, gearshift lever is on the right sideTwo-way hydraulic output (optional)Double PTO speed 540/1000Wheel Tread adjusted steplesslyLuxury driver’s seatSwing draw-bar(optional)Driver’s Cab with heater or air conditioner(optional)Air brake for trailer (optional)tyres size: 14.9-26/18.4-38
Functions:
The tractor can accomplish various farm works when attaching different farm implements, such as hole driling, plowing, rotary tilling, harrowing, seeding, harvesting, spraying, grass cutting and transportion as well, and also can be equipped with front end loader and back hoe.

Model	TF1504
Engine	Diesel engine,110.3kw
Type	150hp,4WD,wheeled tractor
Clutch	Dual-stage clutch
Steering	Hydraulic steering
Gear	16F+8R, side gear lever
PTO speed(rpm)	760/850
Lifter	Double cylinder high-pressure lifter
Tyre (Front/Rear)	14.9-26/18.4-38
Brand	LUZHONG
OEM	YES
